Zero Dynamic Soft Bearing Rotor Balancing Machine
1. Equipment Description
Zero Dynamic Soft Bearing Rotor Balancing Machine (Model: XH-7600B) is designed for single/double-plane balancing of magnetic and non-magnetic rotors. This balancing machine is ideally suited for applications such as brushless vacuum cleaner rotors, brushless power tool rotors brushless hair dryer components, robot knuckle motor rotor and nail polisher rotors.
Featuring a soft bearing balance measurement structure, the machine offers distinct advantages: a wider balancing speed range, superior measurement accuracy, and exceptional repeatability. Equipped with high-sensitivity vibration sensors, custom data acquisition cards, and Zero Dynamic’s high-precision balancing software, it achieves outstanding measurement precision (workpiece residual unbalance ≤0.5mg or lower).
The system ensures versatility through easy fixture adaptation for different workpieces. With simple operator training, users can independently replace fixtures and recalibrate the equipment, minimizing downtime and enhancing operational efficiency.
Serial No. | Item Details | Parameter Range |
1 | Equipment Model | XH-7600B |
2 | Rotor diameter range (mm) | φ15-φ40 |
3 | Supporting rotor span (mm) | 20-200 |
4 | Rotor weight (kg) | 0.01-0.5 |
5 | Repeatability accuracy (mg) | ≤2 |
6 | Balance function | Single/Double plane balance |
7 | Dynamic balance function | Single plane/double plane/triple plane |
8 | Balancing speed range (rpm) | 1200-5000 |
9 | Drive method | Belt drive |
10 | Power supply | 220V/50Hz |
11 | Operation interface | English/Simplified Chinese |
12 | Measurement system | XH-8600 |
13 | Equipment dimension (mm) | 420*500*700 |
14 | Equipment type | Desktop type |

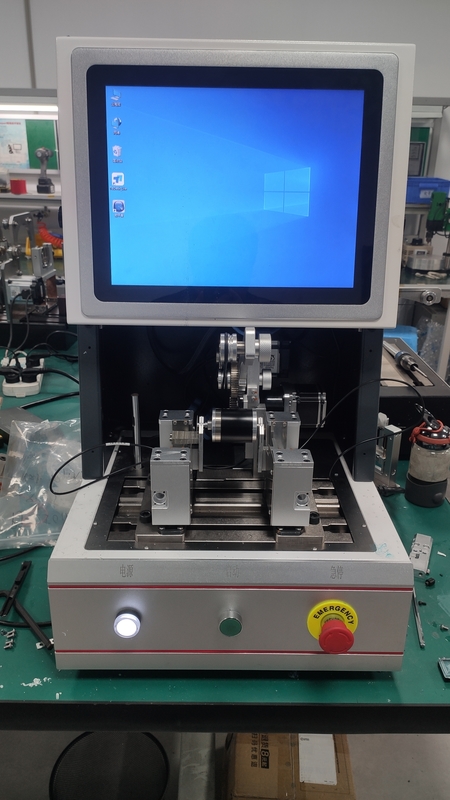

3. Equipment Photo:
4. Main Features:
4.1 No re-calibration is required for the same type of rotor at the same revolving speed, ensuring easy setup.
4.2 The test software developed by our company incorporates data saving, exporting & printing, and inquiry functionalities.
4.3 It is equipped with MES data uploading capability.
4.4 Features high accuracy and excellent repeatability.
4.5 Operates on a Windows operating system with English/Simplified Chinese interfaces, designed for ease of learning.
4.6 Supports barcode input and offers strong traceability.
